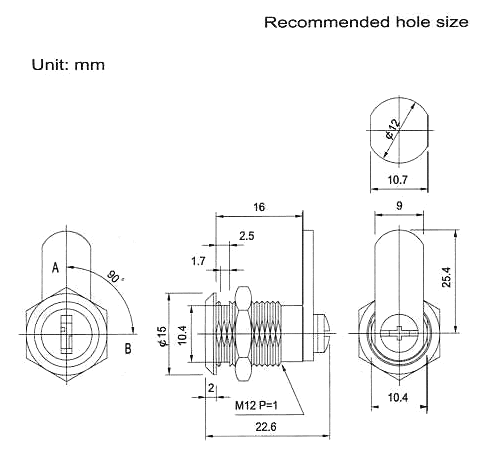

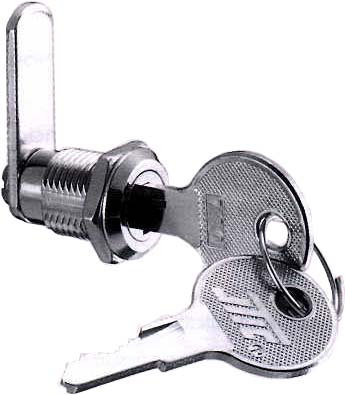

C1093 MICRO CAM LOCK
DESCRIPTIONS:
  • Zinc alloy die cast housing and cylinder.
  • Bright chrome plated standard.
  • 5 disc tumbler mechanism.
  • Brass keys, nickel plated.
  • Key may be withdrawn in one or both positions.
  • Various cam configurations and rotations available.
  • Cam is afixed by screw.
  • Hex nut or speed clip mounted.
  • 30 combinations available.

KEY-PULL FIGURES
-Indicates Key-Pull
-Indicates No Key-Pull


Fig. No. Lock Number Positions Key Pulls Turn
1 C1093-1 2 1 90 ¢X
2 C1093-2 2 2 90 ¢X
