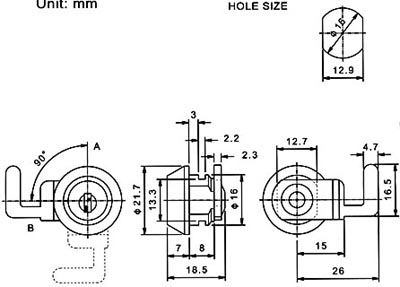

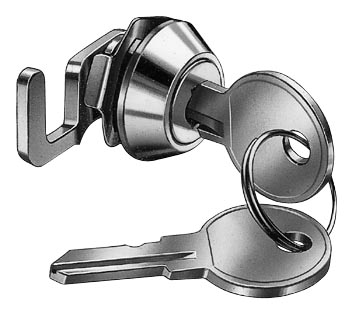

C300R
CAM LOCK
DESCRIPTIONS:
Zinc alloy die cast housing and cylinder.
Bright chrome plated standard.
4 disc tumbler mechanism.
Brass keys, nickel plated.
Key may be withdrawn in one or both positions.
Various cam configurations and rotations available.
Cam is affixed by fixed.
Speed clip mounted.
5 combinations available.
KEY-PULL FIGURES
-Indicates Key-Pull
-Indicates No Key-Pull
Fig. No.
Lock Number
Positions
Key Pulls
Turn
1
C300R-1
2
2
90
¢X
2
C300R-2
2
2
90
¢X

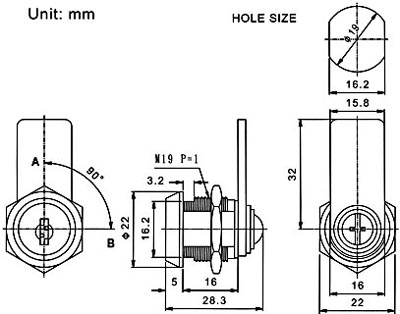

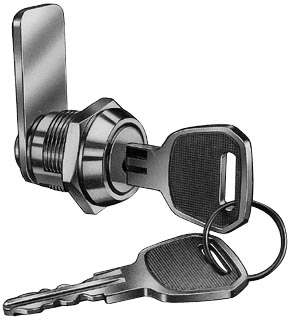

C620
CAM LOCK
DESCRIPTIONS:
. Zinc alloy die cast housing and cylinder.
. Bright chrome plated standard.
. 5 disc tumbler mechanism.
. Brass keys, nickel plated.
. Key may be withdrawn in one or both positions..
. Various cam configurations and rotations available.
. Cam is affixed by screw.
. Hex nut or speed clip mounted.
. 100 combinations available.
KEY-PULL FIGURES
-Indicates Key-Pull
-Indicates No Key-Pull
Fig. No.
Lock Number
Positions
Key Pulls
Turn
1
C620-1
2
1
90
¢X
1
C620-2
2
2
90
¢X
