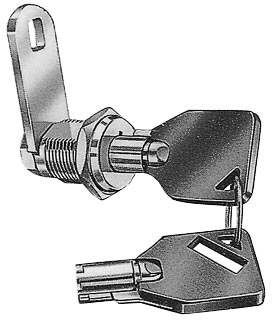

C310 CAM LOCK
DESCRIPTIONS:
  • Brass housing and cylinder.
  • Bright chrome plated standard.
  • 7 pin tumbler mechanism.
  • Steel made tubular keys, nickel plated, with plastic cover.
  • Key may be withdrawn in one or both positions.
  • 3 sizes available.
  • Various cam configurations and rotations available.
  • Cam is affixed by nut.
  • Hex nut mounted.
  • 10000 combinations available.

KEY-PULL FIGURES
-Indicates Key-Pull
-Indicates No Key-Pull

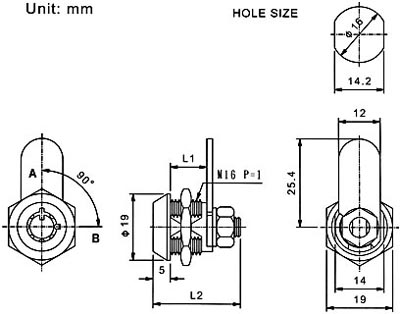

Sizes
S 10.5 25
M 13 27.5
L 16 30.5
Fig. No. Lock Number Positions Key Pulls Turn
1 C310-1 2 1 90 ¢X
2 C310-2 2 2 90 ¢X

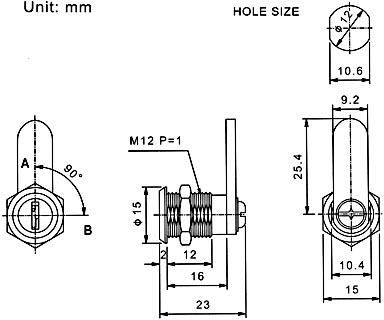

C1091 CAM LOCK
DESCRIPTIONS:
  • . Zinc alloy die cast housing and cylinder.
  • . Bright chrome plated standard.
  • . 4 disc tumbler mechanism.
  • . Brass keys, nickel plated.
  • . Key may be withdrawn in one or both positions..
  • . Various cam configurations and rotations available.
  • . Cam is affixed by screw.
  • . Hex nut mounted.
  • . 14 combinations available.

KEY-PULL FIGURES
-Indicates Key-Pull
-Indicates No Key-Pull

Fig. No. Lock Number Positions Key Pulls Turn
1 C1091-1 2 1 90 ¢X
2 C1091-2 2 2 90 ¢X
3 C1091-3 3 3 180 ¢X
