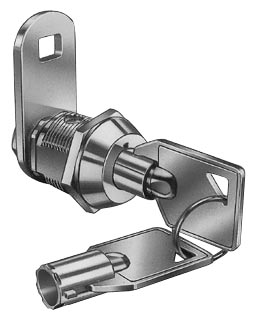

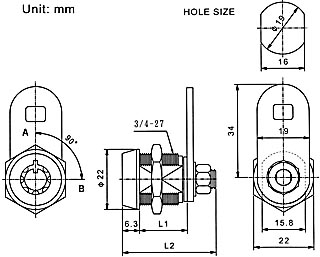

C510Z SERIES CAM LOCK
DESCRIPTIONS:
  • C510XS brass housing and cylinder.
  • C510ZSS, C510ZS, C510ZM and C510ZL zinc alloy die cast housing and cylinder.
  • Bright chrome plated standard.
  • 7 pin tumbler mechanism.
  • Steel made tubular keys, nickel plated.
  • Key may be withdrawn in one or both positions.
  • 5 sizes available.
  • Various cam configurations and rotations available.
  • Cam is affixed by nut.
  • Hex nut mounted.
  • 10000 combinations available.

KEY-PULL FIGURES
-Indicates Key-Pull
-Indicates No Key-Pull


Sizes
XS 9.5 23.3
ZSS 11 25
ZS 17 34.3
ZM 23 39.7
ZL 28 44.7
Fig. No. Lock Number Positions Key Pulls Turn
1 C510XS-1 C510ZSS-1
C510ZS-1 C510ZM-1
C510ZL-1		 2 1 90 ¢X
2 C510XS-2 C510ZSS-2
C510ZS-2 C510ZM-2
C510ZL-2		 2 2 90 ¢X

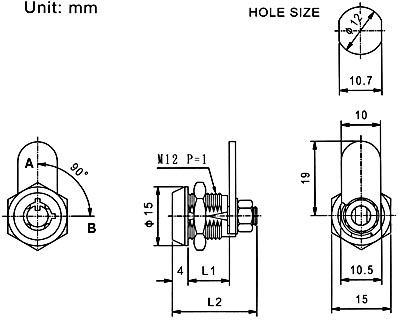

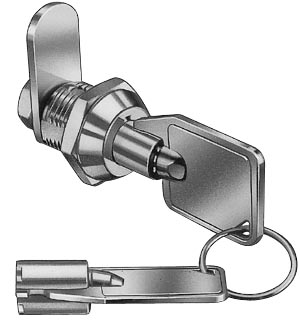

C520 SERIES CAM LOCK
DESCRIPTIONS:
  • C520ZS zinc alloy die cast housing and cylinder.
  • C520M and C520L brass housing and cylinder.
  • Bright chrome plated standard.
  • 4 pin tumbler mechanism.
  • Steel made tubular keys, nickel plated.
  • Key may be withdrawn in one or both positions.
  • 3 sizes available.
  • Various cam configurations and rotations available.
  • Cam is affixed by nut.
  • Hex nut mounted.
  • 100 combinations available.

KEY-PULL FIGURES
-Indicates Key-Pull
-Indicates No Key-Pull

Sizes
ZS 10.5 21.1
M 13 23.6
L 16 26.6
Fig. No. Lock Number Positions Key Pulls Turn
1 C520ZS-1
C520M-1
C520L-1		 2 1 90 ¢X
2 C520ZS-2
C520M-2
C520L-2		 2 2 90 ¢X
