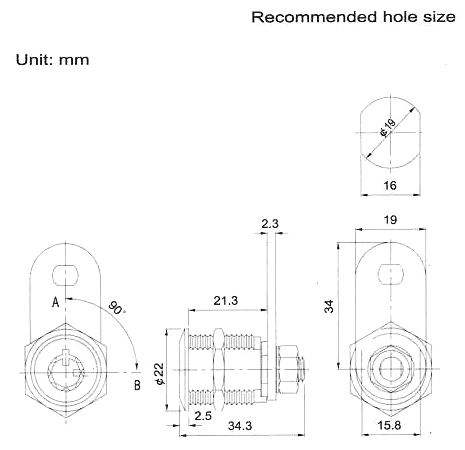

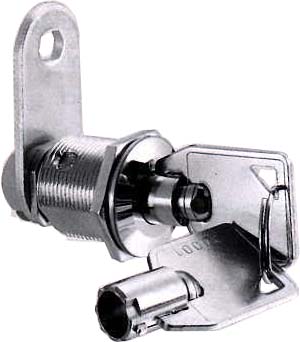

C516 LARGE FULL SIZE FLAT CAM LOCK
DESCRIPTIONS:
  • Brass housing and zinc alloy die cast cylinder.
  • Bright chrome plated standard.
  • 7 pin tumbler mechanism.
  • Steel made tubular keys, nickel plated.
  • Key may be withdrawn in one or both positions.
  • Various cam configurations and rotations available.
  • Cam is affixed by nut.
  • Hex nut mounted.
  • 10000 combinations available.

KEY-PULL FIGURES
-Indicates Key-Pull
-Indicates No Key-Pull

Fig. No. Lock Number Positions Key Pulls Turn
1 C516-1 2 1 90 ¢X
2 C516-2 2 2 90 ¢X

(   ):Momentary Contact
