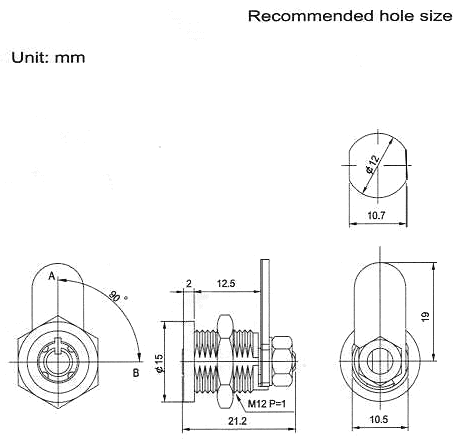

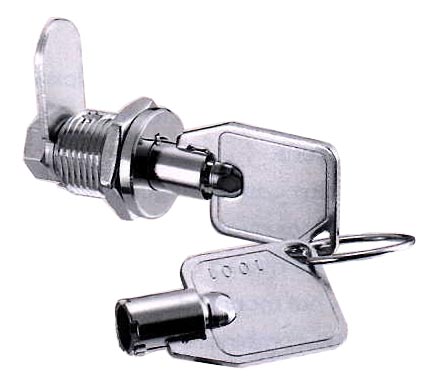

C529 MICRO  CAM LOCK
DESCRIPTIONS:
  • Brass housing and cylinder.
  • Bright chrome plated standard.
  • 4 pin tumbler mechanism.
  • Steel made tubular keys, nickel plated.
  • Key may be withdrawn in one or both positions.
  • Various cam configurations and rotations available.
  • Cam is affixed by nut.
  • Hex nut mounted.
  • 100 combinations available.

KEY-PULL FIGURES
-Indicates Key-Pull
-Indicates No Key-Pull


Fig. No. Lock Number Positions Key Pulls Turn
1 C529-1 2 1 90 °
2 C529-2 2 2 90 °
