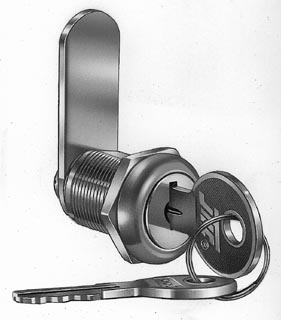

C610 SERIES STAINLESS STEEL CAPPED BEZEL CAM LOCK
DESCRIPTIONS:
  • Zinc alloy die cast housing and cylinder.
  • Stainless steel capped bezel.
  • Yellow die-chromate plated standard.
  • 5 disc tumbler mechanism.
  • Brass keys, nickel plated.
  • Key may be withdrawn in one or both positions.
  • 5 sizes available.
  • Various cam configurations and rotations available.
  • C610XS cam is fixed only, other size cam affixed by screw or fixed.
  • Hex nut or speed clip mounted.
  • 100 combinations available.

KEY-PULL FIGURES
-Indicates Key-Pull
-Indicates No Key-Pull


SCREW FIXED
Sizes
XS 11.1 18.5 14.8
S 15.9 23 19.2
M 22.2 29.1 ¡@
L 28.6 35.7 ¡@
XL 35 42 ¡@
Fig. No. Lock Number Positions Key Pulls Turn
1 C610-1 2 1 90 ¢X
2 C610-2 2 2 90 ¢X

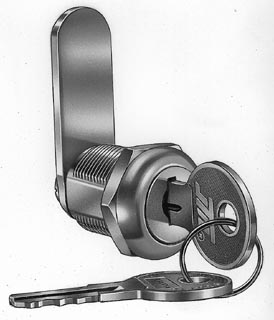

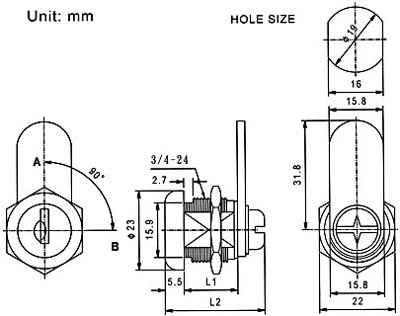

C610-D SERIES DUST SHUTTER CAM LOCK
DESCRIPTIONS:
  • Zinc alloy die cast housing and cylinder.
  • Stainless steel capped bezel with dust shutter mechanism.
  • Yellow die-chromate plated standard.
  • 5 disc tumbler mechanism.
  • Brass keys, nickel plated.
  • Key may be withdrawn in one or both positions..
  • 4 sizes available.
  • Various cam configurations and rotations available.
  • Cam is affixed by screw or fixed.
  • Hex nut or speed clip mounted.
  • 100 combinations available.

KEY-PULL FIGURES
-Indicates Key-Pull
-Indicates No Key-Pull

SCREW FIXED
Sizes
S 15.9 23 19.2
M 22.2 29.1 ¡@
L 28.5 35.7 ¡@
XL 35 42 ¡@
Fig. No. Lock Number Positions Key Pulls Turn
1 C610-1-D 2 1 90 ¢X
2 C610-2-D 2 2 90 ¢X
