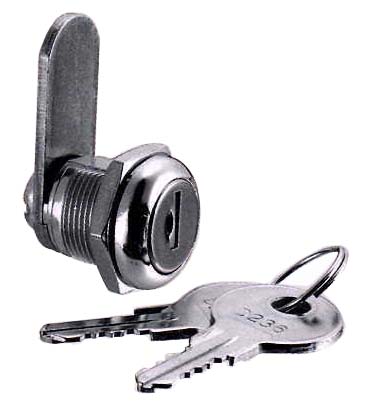

C626-D  series  LARGE FULL SIZE FLAT CAM LOCK
DESCRIPTIONS:
  • Zinc alloy die cast housing and cylinder.
  • Stainless steel capped bezel with dust shutter mechanism.
  • Yellow die-chromate plated standard.
  • 5 disc tumbler mechanism.
  • Reversible double-bitted brass keys, nickel plated.
  • Key may be withdrawn in one or both positions.
  • 3 sizes available.
  • Various cam configurations and rotations available.
  • Cam is affixed by screw or fixed.
  • Hex nut or speed clip mounted.
  • 100 combinations available

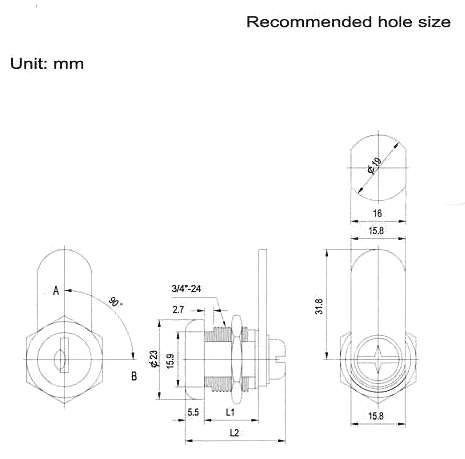

KEY-PULL FIGURES
-Indicates Key-Pull
-Indicates No Key-Pull

                             SCREW  FIXED

Sizes L1 L2 L2
S 15.9 22.9 19.3
M 22.2 29.3 ¡@
XL 35.3 42.2 ¡@
Fig. No. Lock Number Positions Key Pulls Turn
1 C626S-1 2 1 90 ¢X
1 C626M-1 2 1 90 ¢X
1 C626XL-1 2 1 90 ¢X
2 C626S-2 2 2 90 ¢X
2 C626M-2 2 2 90 ¢X
2 C626XL-2 2 2 90 ¢X

(   ):Momentary Contact

BACK
