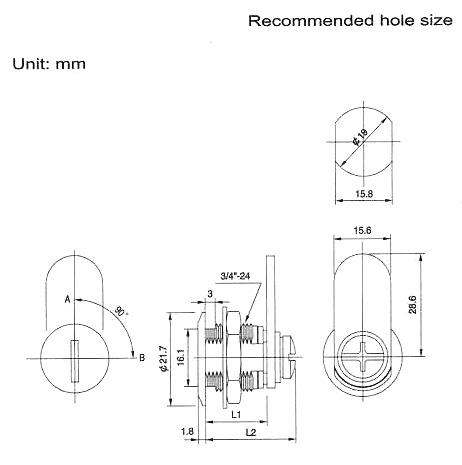

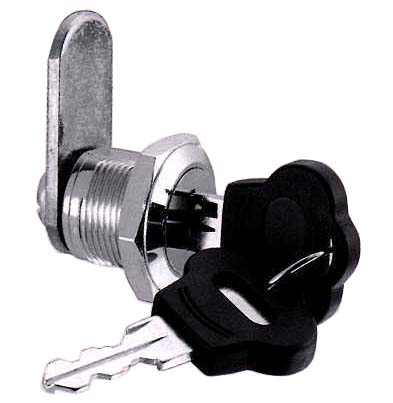

C628 LARGE FULL SIZE FLAT CAM LOCK
DESCRIPTIONS:
  • Zinc alloy die cast housing and cylinder.
  • Bright chrome plated standard.
  • 5 disc tumbler mechanism.
  • Reversible double-bitted brass keys, nickel plated,plastic cover.
  • Key may be withdrawn in one or both positions.
  • 2 sizes available.
  • Various cam configurations and rotations available.
  • Cam is affixed by screw.
  • Hex nut or speed clip mounted.
  • 100 combinations available.

KEY-PULL FIGURES
-Indicates Key-Pull
-Indicates No Key-Pull

Sizes L1 L2
S 17.8 24.9
L 30.6 38.4
Fig. No. Lock Number Positions Key Pulls Turn
1 C628S-1 2 1 90 ¢X
1 C628L-1 2 1 90 ¢X
1 C628S-2 2 2 90 ¢X
1 C628L-2 2 2 90 ¢X
