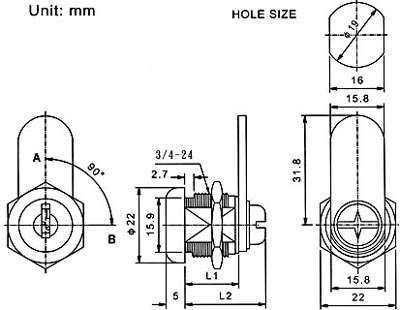

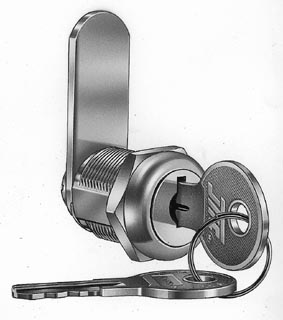

C650 SERIES DIE CAST CAM LOCK
DESCRIPTIONS:
  • Zinc alloy die cast housing and cylinder.
  • Bright chrome plated standard.
  • 5 disc tumbler mechanism.
  • Brass keys, nickel plated.
  • Key may be withdrawn in one or both positions.
  • 5 sizes available.
  • Various cam configurations and rotations available.
  • C650XS cam is fixed only, other size cam affixed by screw or fixed.
  • Hex nut or speed clip mounted.
  • 100 combinations available.

KEY-PULL FIGURES
-Indicates Key-Pull
-Indicates No Key-Pull


SCREW FIXED
Sizes
XS 11.1 18.6 14.7
S 15.9 23.6 19.2
M 22.2 29.8 ¡@
L 28.6 35.7 ¡@
XL 35.2 41.9 ¡@
Fig. No. Lock Number Positions Key Pulls Turn
1 C650-1 2 1 90 ¢X
2 C650-2 2 2 90 ¢X


a

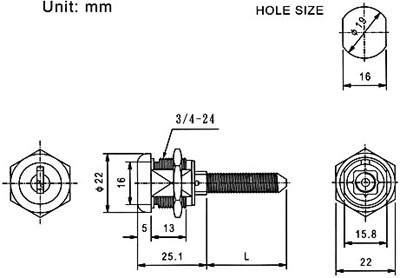

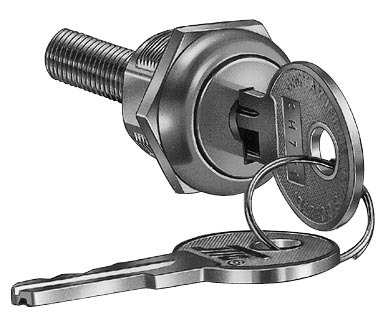

VT650 SERIES TYPE CAM LOCK
DESCRIPTIONS:
  • Zinc alloy die cast housing and cylinder.
  • Bright chrome plated standard.
  • 5 disc tumbler mechanism.
  • Brass keys, nickel plated.
  • Key may be withdrawn every 90o degrees.
  • Standard thread on shaft is 5/16"-18.
  • "L" dimension 30.8mm standard, others upon customer request.
  • Hex nut or speed clip mounted.
  • 100 combinations available.

KEY-PULL FIGURES
-Indicates Key-Pull
-Indicates No Key-Pull

Fig. No. Lock Number Positions Key Pulls Turn
1 VT650-2 2 2 180 ¢X
2 VT650-4 4 4 360 ¢X
