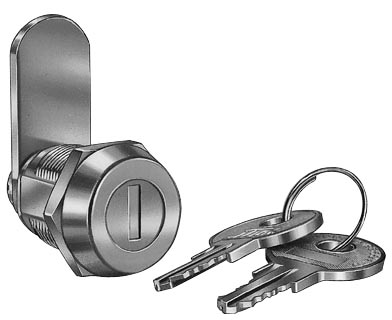

C680 SERIES DOUBLE-BITTED KEY CAM LOCK
DESCRIPTIONS:
  • Zinc alloy die cast housing and cylinder.
  • Stainless steel capped bezel with dust shutter mechanism.
  • Duplex chrome plated standard.
  • C680XS 4 disc tumbler mechanism, others 5 disc tumbler mechanism.
  • Reversible double-bitted brass keys, nickel plated.
  • Key may be withdrawn in one or both positions..
  • 5 sizes available.
  • Various cam configurations and rotations available.
  • C680XS cam is affixed by nut or fixed, others cam is affixed by screw or fixed.
  • Hex nut or speed clip mounted.
  • 100 combinations available.

KEY-PULL FIGURES
-Indicates Key-Pull
-Indicates No Key-Pull

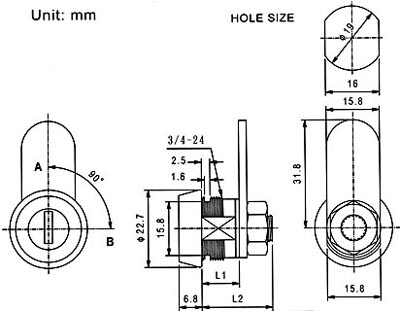

NUT
Sizes
XS 11.1 21

SCREW FIXED
Sizes
XS 11.1 ¡@ 14.5
S 16.1 22.7 19.2
M 22.4 29.1 25.5
L 28.6 35.2 31.6
XL 34.9 41.7 38
Fig. No. Lock Number Positions Key Pulls Turn
1 C680-1 2 1 90 ¢X
2 C680-2 2 2 90 ¢X
