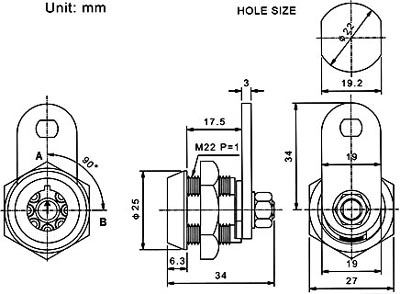

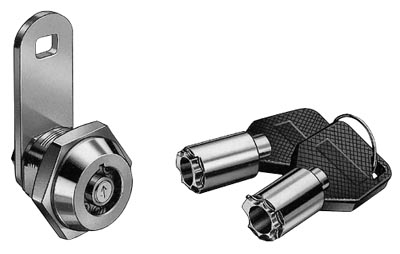

C910
HIGH SECURITY CAM LOCK
DESCRIPTIONS:
Brass housing and cylinder.
Bright chrome plated standard.
High security 14 pin tumbler mechanism.
Steel made tubular keys, nickel plated, with plastic cover.
Key may be withdrawn in one or both positions.
Various cam configurations and rotations available.
Cam is affixed by nut.
Hex nut mounted.
10000 combinations available.
KEY-PULL FIGURES
-Indicates Key-Pull
-Indicates No Key-Pull
Fig. No.
Lock Number
Positions
Key Pulls
Turn
1
C910-1
2
1
90
¢X
2
C910-2
2
2
90
¢X

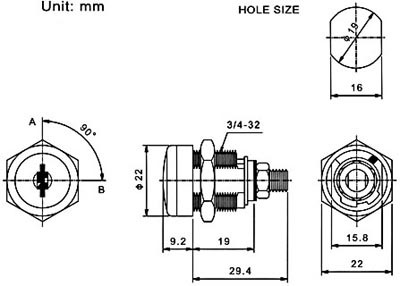

C920
HIGH SECURITY CAM LOCK
DESCRIPTIONS:
Zinc alloy die cast housing and cylinder.
Bright chrome plated standard
14 tumbler, triple bitted mechanism.
Brass keys, nickel plated.
Key withdrawals in one position only.
Hex nut mounted.
5000 combinations available.
KEY-PULL FIGURES
-Indicates Key-Pull
-Indicates No Key-Pull
Fig. No.
Lock Number
Positions
Key Pulls
Turn
1
C920
2
1
90
¢X
