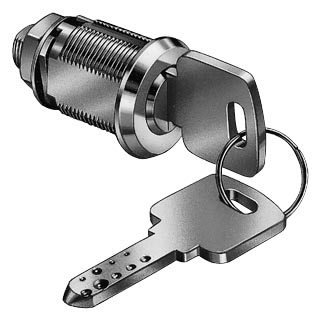

C930 HIGH SECURITY CAM LOCK
DESCRIPTIONS:
  • Brass housing and cylinder.
  • Bright chrome plated standard.
  • 9 pin tumbler mechanism.
  • Brass keys, nickel plated
  • Key withdrawals in one position only.
  • Cam is affixed by nut.
  • Hex nut mounted.
  • 10000 combinations available.

KEY-PULL FIGURES
-Indicates Key-Pull
-Indicates No Key-Pull

Fig. No. Lock Number Positions Key Pulls Turn
1 C930 2 1 90 ¢X

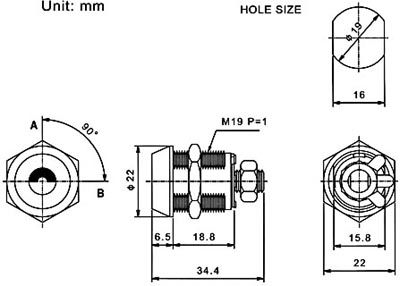

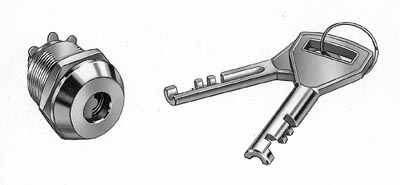

C940 CAM LOCK
DESCRIPTIONS:
  • Zinc alloy die cast housing cylinder.
  • Bright chrome plated standard.
  • Semi-round keys, nickel plated.
  • Key withdrawals in one position only.
  • 10000 combinations available.

KEY-PULL FIGURES
-Indicates Key-Pull
-Indicates No Key-Pull

Fig. No. Lock Number Positions Key Pulls Turn
1 C940-1 2 1 90 ¢X
