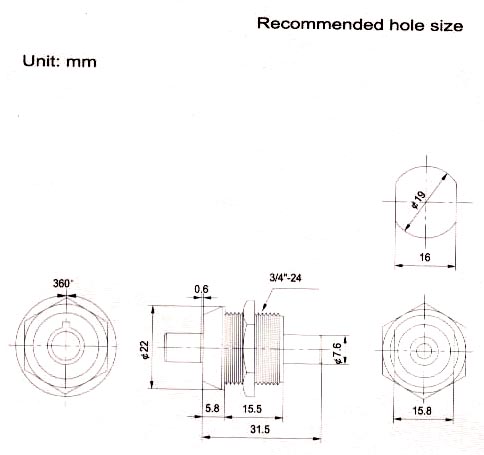

PL514 PUSH-IN LOCK
DESCRIPTIONS:
  • Zinc alloy die cast housing and cylinder,
  • Bright chrome plated stand.
  • 7 Pins tumbler mechanism.
  • Steel made tubular keys, nickel plated , with plastic cover.
  • Key withdrawals in one position only.
  • Hex nut mounted.
  • 100 Combinations available.

PL524 PUSH-IN LOCK
DESCRIPTIONS:
  • Zinc alloy die cast housing and cylinder.
  • Bright chrome plated stand.
  • 4 Pins tumbler mechanism.
  • Steel made tubular keys, nickel plated,with plastic cover.
  • Key withdrawals in one or two position .
  • Hex nut mounted.
  • 100 Combinations available.

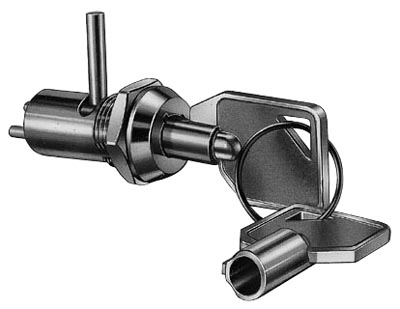

S1097 KEYLOCK SWITCH
DESCRIPTIONS:
  • Zinc alloy die cast housing and cylinder.
  • Bright chrome plated standard.
  • No pin tumbler mechanism.
  • Zinc alloy tubular keys, chrome plated.

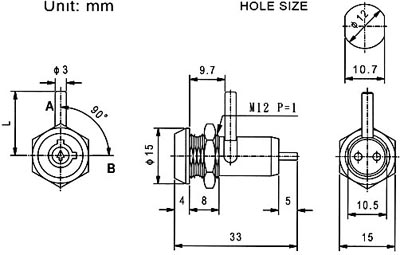

  • "L" dimension 13mm standard; other dimensions available upon request.
  • Dual-functioned Key Lock Switch.
  • Key withdrawals in both positions only.
  • Silver plated contacts and terminals.
  • 2 position (off-on) 2 terminals.
  • Hex nut or speed clip mounted.
  • 6 combinations available.

KEY-PULL FIGURES
-Off Position
-Indicates Key-Pull
-Indicates No Key-Pull

Fig. No. Lock Number Pole Positions Terminals Key Pulls Turn Type
1 S1097-2 1 2 2 2 90 ¢X Off On SPST
