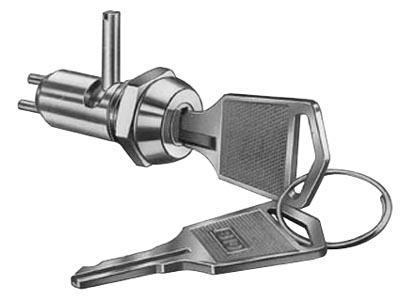

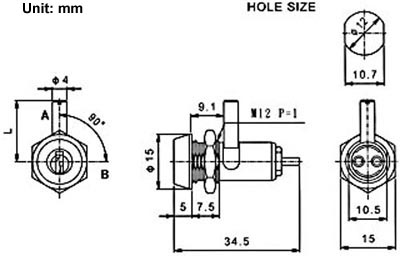

S1096 KEYLOCK SWITCH
DESCRIPTIONS:
  • Zinc alloy die cast housing and cylinder.
  • Stainless steel capped bezel.
  • Bright chrome plated standard.
  • 4 disc tumbler mechanism.
  • Brass keys, nickel plated.
  • "L" dimension 13mm standard; other dimensions available upon request.
  • Dual-functioned Key Lock Switch.
  • Key may be withdrawn in one or both positions.
  • Silver plated contacts and terminals.
  • 2 position (off-on) 2 terminals.
  • Hex nut or speed clip mounted.
  • 20 combinations available.

KEY-PULL FIGURES
-Off Position
-Indicates Key-Pull
-Indicates No Key-Pull

Fig. No. Lock Number Pole Positions Terminals Key Pulls Turn Type
1 S1096-1 1 2 2 1 90 ¢X Off On SPST
2 S1096-2 1 2 2 2 90 ¢X Off On SPST

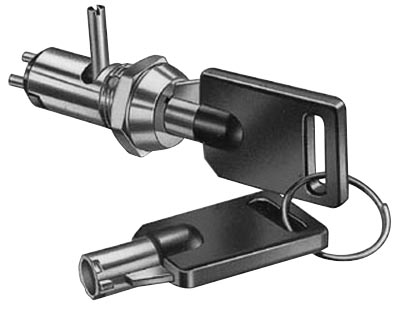

S1098 KEYLOCK SWITCH
DESCRIPTIONS:
  • Zinc alloy die cast housing and brass cylinder.
  • Bright chrome plated standard.
  • 4 pin tumbler mechanism.
  • Steel made tubular keys, nickel plated, with plastic cover.
  • "L" dimension 13mm standard; other dimensions available upon request.
  • Dual-functioned Key Lock Switch.
  • Key withdrawals in both positions only.
  • Silver plated contacts and terminals.
  • 2 position (off-on) 2 terminals.
  • Hex nut or speed clip mounted.
  • 200 combinations available.

KEY-PULL FIGURES
-Off Position
-Indicates Key-Pull
-Indicates No Key-Pull

Fig. No. Lock Number Pole Positions Terminals Key Pulls Turn Type
1 S1098-2 1 2 2 2 90 ¢X Off On SPST
