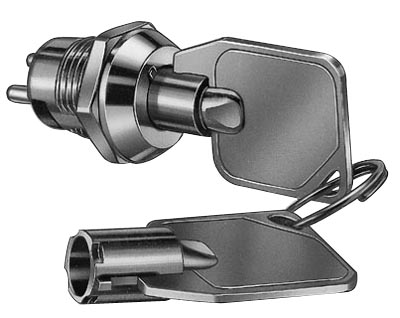

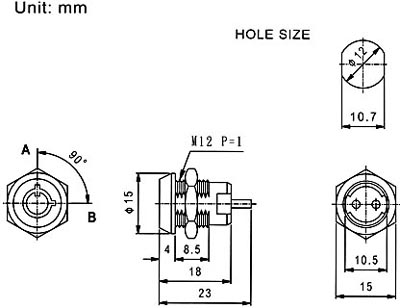

S126 S146 KEYLOCK SWITCH
DESCRIPTIONS:
  • Zinc alloy die cast housing and cylinder.
  • Bright chrome plated standard.
  • 4 pin tumbler mechanism.
  • Steel made tubular keys, nickel plated.
  • Key withdrawals in both positions only.
  • Silver plated contacts and terminals.
  • S126 2 position (off-on) 2 terminals.
  • S146 2 position (on-on) 4 terminals.
  • Hex nut mounted.
  • 200 combinations available.

KEY-PULL FIGURES
-Off Position
-Indicates Key-Pull
-Indicates No Key-Pull

Fig. No. Lock Number Pole Positions Terminals Key Pulls Turn Type
1 S126-2 1 2 2 2 90 X Off On SPST
2 S146-2 1 2 4 2 90 X On On SPST

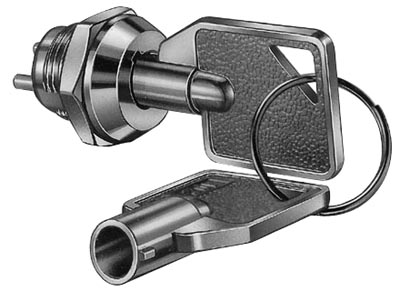

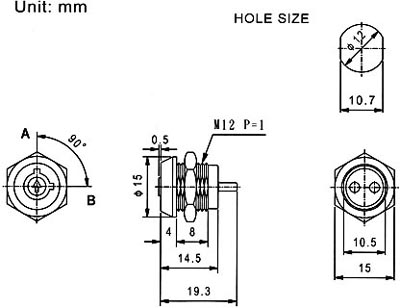

NS112 KEYLOCK SWITCH
DESCRIPTIONS:
  • Zinc alloy die cast housing and cylinder.
  • Bright chrome plated standard
  • No pin tumbler mechanism.
  • Zinc alloy tubular keys, chrome plated.
  • Key withdrawals in both positions only.
  • Silver plated contacts and terminals.
  • 2 position (off-on) 2 terminals.
  • Hex nut mounted.
  • 1 combination only.

KEY-PULL FIGURES
-Off Position
-Indicates Key-Pull
-Indicates No Key-Pull

Fig. No. Lock Number Pole Positions Terminals Key Pulls Turn Type
1 NS112-2 1 2 2 2 90 X Off On SPST
