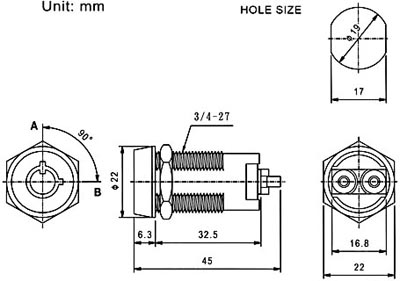

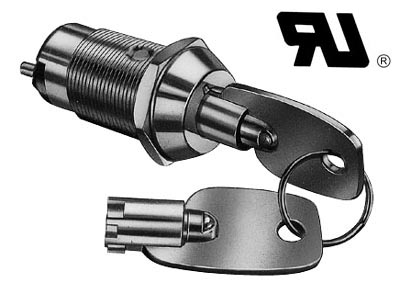

S202Z S202ZA KEYLOCK SWITCH
DESCRIPTIONS:
  • Zinc alloy die cast housing and cylinder.
  • Bright chrome plated standard.
  • 7 pin tumbler mechanism.
  • Steel made tubular keys, nickel plated.
  • Key may be withdrawn in one or both positions.
  • Silver plated contacts and terminals.
  • S202Z 2 position (off-on) 2 tubular terminals.
  • S202ZA 2 position (off-on) 2 tubular terminals, spring loaded for momentary contact.
  • Hex nut mounted.
  • 10000 combinations available.

SPECIFICATIONS:

  • Contact Rating: 4A 125VAC, 2A 250VAC.
  • Contact resistance: 10 Milli - Ohms Max.
  • Insulation Resistance: 500 Meg - Ohms Min. (500VDC)
  • Dielectric Strength: 1500VAC - 1 Minute.

KEY-PULL FIGURES
-Off Position
-Indicates Key-Pull
-Indicates No Key-Pull

Fig. No. Lock Number Pole Positions Terminals Key Pulls Turn Type
1 S202Z-1 1 2 2 1 90 ¢X Off On SPST
2 S202Z-2 1 2 2 2 90 ¢X Off On SPST
1 S202ZA 1 2 2 1 90 ¢X Off (On) SPST

*(   ):Momentary Contact

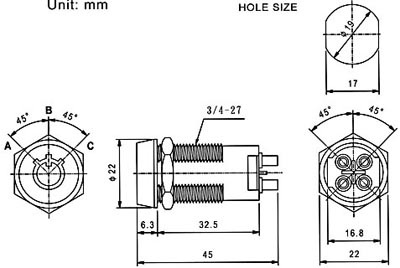

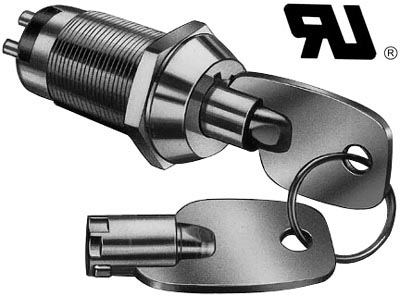

S202ZB S202ZC S202ZD S202ZE KEYLOCK SWITCH
DESCRIPTIONS:
  • Zinc alloy die cast housing and cylinder
  • Bright chrome plated standard.
  • 7 pin tumbler mechanism.
  • Steel made tubular keys, nickel plated.
  • Key may be withdrawn in one or both or three positions.
  • Silver plated contacts and terminals.
  • S202ZB 3 position (on-off-on) 4 terminals.
  • S202ZC 3 position (off-on-on) 4 terminals.
  • S202ZD 2 position (on-on) 4 terminals.
  • S202ZE 2 position (off-on) 4 terminals.
  • Hex nut mounted.
  • 10000 combinations available.

KEY-PULL FIGURES
-Off Position
-Indicates Key-Pull
-Indicates No Key-Pull

Fig. No. Lock Number Pole Positions Terminals Key Pulls Turn Type
1 S202ZB 1 3 4 3 45¢X-0¢X-45¢X On Off On ¡@ SPDT
2 S202ZC 1 3 4 3 45¢X-0¢X-90¢X Off On ¡@ On SPDT
3 S202ZD 1 2 4 2 90 ¢X ¡@ On ¡@ On SPDT
4 S202ZE 2 2 4 2 45 ¢X ¡@ Off On ¡@ SPST
