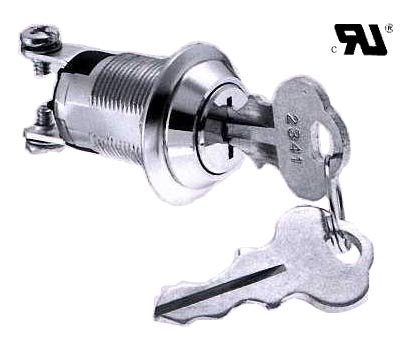

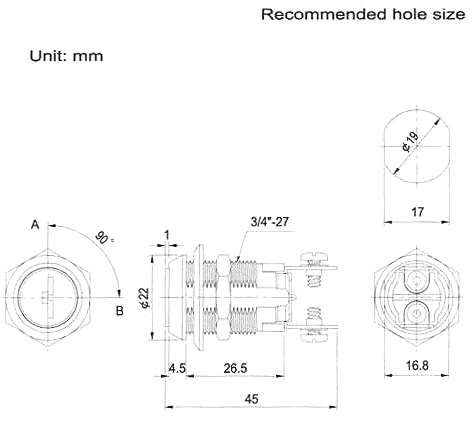

S203  S203M LARGE FULL SIZE FLAT SWITCH LOCK
DESCRIPTIONS:
  • Zinc alloy die cast housing and cylinder.
  • Bright chrome plated standard.
  • 11 disc tumbler mechanism.
  • Reversible double-bitted brass keys
  • Key may be withdrawn in one or both positions.
  • S203 2 position (off-on) 2 screw terminals.
  • S203M 2 position (off-on) 2 screw terminals, spring loaded for momentary contact.
  • Hex nut mounted.
  • 5 combinations available.

¡@

SPECIFICATION

  • Contact Rating: 4A 125VAC, 2A 250VAC.
  • Contact Resistance: 10Milli-Ohms Max.
  • Insulation Resistance: 500 Meg-Ohms Min. (500VDC)
  • Dielectric Strength: 1500 VAC -1 Minute.D

KEY-PULL FIGURES
-Off Position
-Indicates Key-Pull
-Indicates No Key-Pull

Fig. No. Lock Number Pole Positions Terminals Key Pulls Turn Type
1 S203-1 1 2 2 1 90 ¢X Off On SPST
2 S203-2 1 2 2 2 90 ¢X Off On SPST
3 S203M 1 2 2 1 90 ¢X Off (On) SPST

(   ):Momentary Contact
