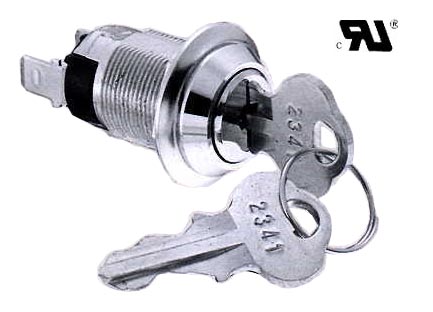

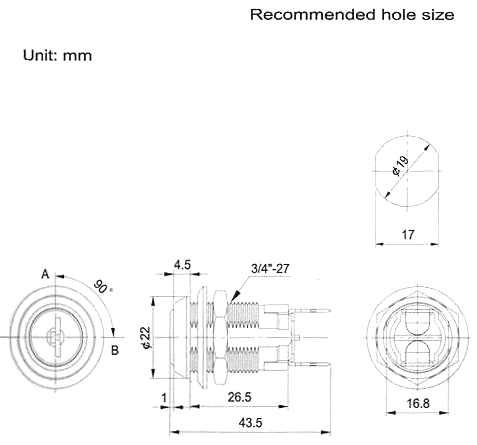

S203A  S203AM LARGE FULL SIZE FLAT SWITCH LOCK
DESCRIPTIONS:
  • Zinc alloy die cast housing and cylinder.
  • Bright chrome plated standard.
  • 11 disc tumbler mechanism.
  • Reversible double-bitted brass keys
  • Key may be withdrawn in one or both positions.
  • S203A 2 position (off-on) 2 spade terminals.
  • S203AM 2 position (off-on) 2 spade terminals, spring loaded for momentary contact.
  • Hex nut mounted.
  • 5 combinations available.

@

SPECIFICATION

  • Contact Rating: 4A 125VAC, 2A 250VAC.
  • Contact Resistance: 10Milli-Ohms Max.
  • Insulation Resistance: 500 Meg-Ohms Min. (500VDC)
  • Dielectric Strength: 1500 VAC -1 Minute.D

KEY-PULL FIGURES
-Off Position
-Indicates Key-Pull
-Indicates No Key-Pull

Fig. No. Lock Number Pole Positions Terminals Key Pulls Turn Type
1 S203A-1 1 2 2 1 90 X Off On SPST
2 S203A-2 1 2 2 2 90 X Off On SPST
3 S203AM 1 2 2 1 90 X Off (On) SPST

(   ):Momentary Contact
