S206A KEYLOCK SWITCH
DESCRIPTIONS:
  • Zinc alloy die cast housing and cylinder.
  • Bright chrome plated standard.
  • 7 pin tumbler mechanism.
  • Steel made tubular keys, nickel plated.
  • Key may be withdrawn in one or both positions.
  • Silver plated contacts and terminals.
  • 2 position (off-on) 4 terminals. (2NO 2NC)
  • Hex nut or speed clip mounted.
  • 10000 combinations available.

KEY-PULL FIGURES
-Off Position
-Indicates Key-Pull
-Indicates No Key-Pull

Fig. No. Lock Number Pole Positions Terminals Key Pulls Turn Type
1 S206A-1 2 2 4 1 90 ¢X Off On SPST
2 S206A-2 2 2 4 2 90 ¢X Off On SPST

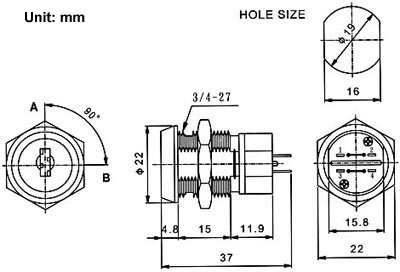

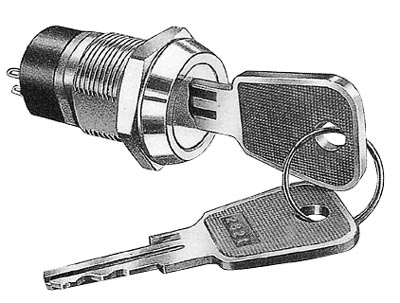

S286A KEYLOCK SWITCH
DESCRIPTIONS:
  • Zinc alloy die cast housing and cylinder.
  • Bright chrome plated standard.
  • 5 disc tumbler mechanism.
  • Reversible double-bitted brass keys, nickel plated.
  • Silver plated contacts and terminals.
  • 2 position (off-on) 4 terminals. (2NO 2NC)
  • Hex nut or speed clip mounted.
  • 150 combinations available.

KEY-PULL FIGURES
-Off Position
-Indicates Key-Pull
-Indicates No Key-Pull



Fig. No. Lock Number Pole Positions Terminals Key Pulls Turn Type
1 S286A-1 2 2 4 1 90 ¢X Off On DPST
2 S286A-2 2 2 4 2 90 ¢X Off On DPST
