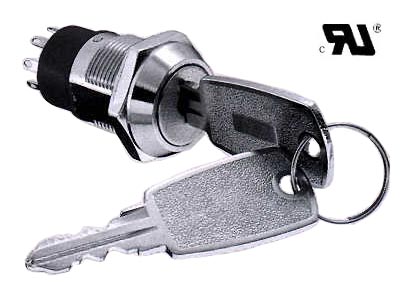

S217  series LARGE FULL SIZE FLAT SWITCH LOCK
DESCRIPTIONS:
  • Zinc alloy die cast housing and cylinder.
  • Bright nickel plated standard.
  • 5 disc tumbler mechanism.
  • Reversible double-bitted brass keys, nickel plated.
  • Various key withdrawals available.
  • Golden plated contacts and terminals.
  • Hex nut or speed clip mounted.
  • 25 combinations available.

@

SPECIFICATION

  • Contact Rating: 4A 125VAC, 2A 250VAC.
  • Contact Resistance: 10Milli-Ohms Max.
  • Insulation Resistance: 500 Meg-Ohms Min. (500VDC)
  • Dielectric Strength: 1500 VAC -1 Minute.

@

(   ):Momentary Contact
