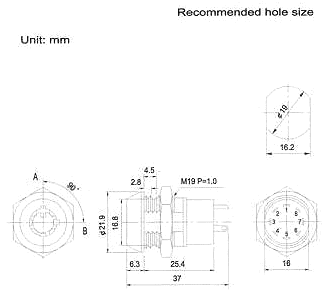

S218 KEYLOCK SWITCH
DESCRIPTIONS:
  • Zinc alloy die cast housing and cylinder.
  • Bright chrome plated standard.
  • 7 pin tumbler mechanism.
  • Steel made tubular keys, nickel plated.
  • Golden plated contacts and terminals.
  • See page xx
  • Hex nut or speed clip mounted.
  • 10000 combinations available.

SPECIFICATIONS:

  • Contact Rating: 4A 125VAC, 2A 250VAC.
  • Contact resistance: 10 Milli - Ohms Max.
  • Insulation Resistance: 200 Meg - Ohms Min. (500VDC)
  • Dielectric Strength: 1000VAC - 1 Minute.

KEY-PULL FIGURES
-Off Position
-Indicates Key-Pull
-Indicates No Key-Pull

Fig. No. Lock Number Pole Positions Terminals Key Pulls Turn Type
1 S502 1 2 2 2 90 ¢X ¡@ Off On SPST
2 S503 1 2 4 2 90 ¢X ¡@ On On SPDT
1 S504 1 3 4 3 45¢X-0¢X-90 ¢X Off On (On) SPDT

*(   ):Momentary Contact
