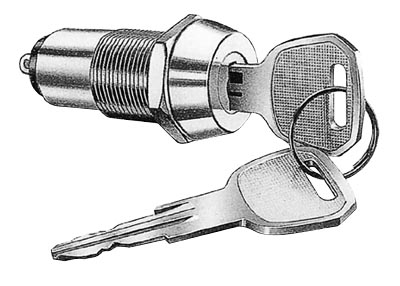

S246 S246M KEYLOCK SWITCH
DESCRIPTIONS:
  • Zinc alloy die cast housing and cylinder.
  • Yellow chromate plated standard.
  • Stainless steel capped bezel with dust shutter mechanism.
  • 5 disc tumbler mechanism.
  • Reversible double-bitted brass keys, nickel plated.
  • Key may be withdrawn in one or both positions.
  • Silver plated contacts and terminals.
  • S246 2 position (off-on) 2 terminals.
  • S246M 2 position (off-on) 2 terminals, spring loaded for momentary contact.
  • Hex nut mounted.
  • 100 combinations available.

SPECIFICATIONS:

  • Contact Rating: 4A 125VAC, 2A 250VAC
  • Contact Resistance: 10 Milli-Ohms Max.
  • Insulation Resistance: 500 Meg-Ohms Min. (500VDC)
  • Dielectric Strength: 1500 VAC - 1 Minute.

KEY-PULL FIGURES
-Off Position
-Indicates Key-Pull
-Indicates No Key-Pull

Fig. No. Lock Number Pole Positions Terminals Key Pulls Turn Type
1 S246-1 1 2 2 1 90 ¢X Off On SPST
2 S246-2 1 2 2 2 90 ¢X Off On SPST
1 S246M 1 2 2 1 90 ¢X Off On SPST

*( ):Momentary Contact

S246-3C KEYLOCK SWITCH
DESCRIPTIONS:
  • Zinc alloy die cast housing and cylinder.
  • Yellow chromate plated standard.
  • Stainless steel capped bezel, dust shutter mechanism.
  • 5 disc tumbler mechanism.
  • Reversible double-bitted brass keys, nickel plated.
  • Key may be withdrawn in one or both positions.
  • Silver plated contacts and terminals.
  • 2 position (off-on) 3 terminals.
  • Hex nut mounted.
  • 100 combinations available.

SPECIFICATIONS:

  • Contact Rating: 4A 125VAC, 2A 250VAC
  • Contact Resistance: 10 Milli-Ohms Max.
  • Insulation Resistance: 500 Meg-Ohms Min. (500VDC)
  • Dielectric Strength: 1500 VAC - 1 Minute.

KEY-PULL FIGURES
-Off Position
-Indicates Key-Pull
-Indicates No Key-Pull

¡@

Fig. No. Lock Number Pole Positions Terminals Key Pulls Turn Type
1 S246-3C-2 1 2 3 1 90 ¢X On On SPDT
2 S246-3C-2 1 2 3 2 90 ¢X On On SPDT
