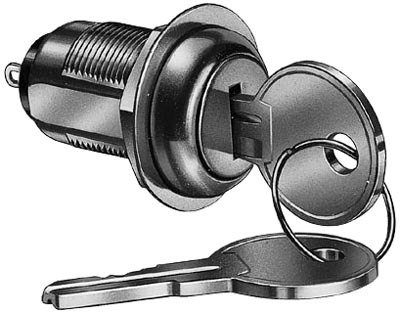

DESCRIPTIONS:
-
Zinc alloy die cast housing and cylinder.
-
Bright chrome plated standard.
-
Stainless steel capped bezel, dust shutter
mechanism.
-
5 disc tumbler mechanism.
-
Brass keys.
-
Key may be withdrawn in both positions only.
-
Silver plated contacts and terminals.
-
S276 2 position (off-on) 2 terminals.
-
Hex nut mounted.
-
100 combinations available.
SPECIFICATIONS:
-
Contact Rating: 4A 125VAC, 2A 250VAC
-
Contact Resistance: 10 Milli-Ohms Max.
-
Insulation Resistance: 500 Meg-Ohms Min.
(500VDC)
-
Dielectric Strength: 1500 VAC - 1 Minute.

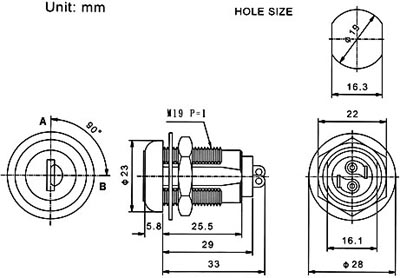

KEY-PULL FIGURES
-Off Position
-Indicates Key-Pull
-Indicates No Key-Pull
|
|
