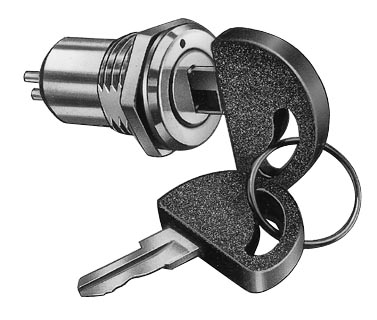

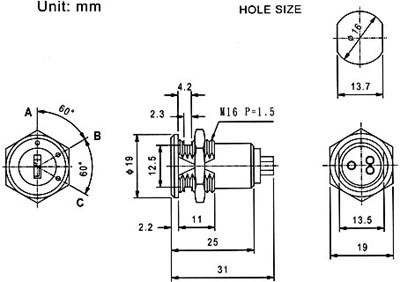

S331 S332 S333 KEYLOCK SWITCH
DESCRIPTIONS:
  • Zinc alloy die cast housing and plastic cylinder.
  • Bright chrome plated standard.
  • 3 disc tumbler mechanism.
  • Brass keys, nickel plated, with plastic cover.
  • Key may be withdrawn in one or both or three positions.
  • Silver plated contacts and terminals.
  • S331 2 position (on-on) 60 index 3 terminals.
  • S332 2 position (off-on) 60 index 2 terminals.
  • S333 3 position (off-on-on) 60 index 3 terminals.
  • Hex nut or speed clip mounted.
  • 16 combinations available.

KEY-PULL FIGURES
-Off Position
-Indicates Key-Pull
-Indicates No Key-Pull

Fig. No. Lock Number Pole Positions Terminals Key Pulls Turn Type
1 S331 1 2 3 2 60 ¢X On On ¡@ SPDT
2 S332 1 2 2 2 60 ¢X Off On ¡@ SPST
3 S333 1 3 3 3 120 ¢X Off On On SPDT

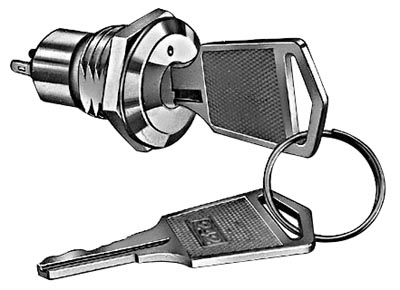

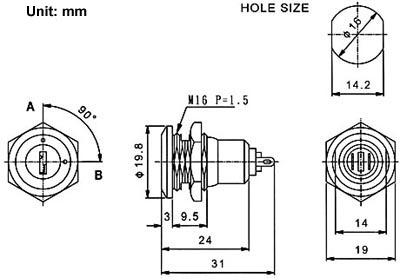

S334B-1 S334B-2 KEYLOCK SWITCH
DESCRIPTIONS:
  • Zinc alloy die cast housing.
  • Stainless steel capped bezel.
  • Zinc plated standard.
  • 4 disc tumbler mechanism.
  • Brass keys, nickel plated.
  • Key may be withdrawn in one or both positions.
  • Silver plated contacts and terminals.
  • 2 position (off-on) 2 terminals.
  • Hex nut or speed clip mounted.
  • 20 combinations available.

KEY-PULL FIGURES
-Off Position
-Indicates Key-Pull
-Indicates No Key-Pull

Fig. No. Lock Number Pole Positions Terminals Key Pulls Turn Type
1 SS334B-1 1 2 2 1 90 ¢X Off On SPST
2 SS334B-2 1 2 2 2 90 ¢X Off On SPST
