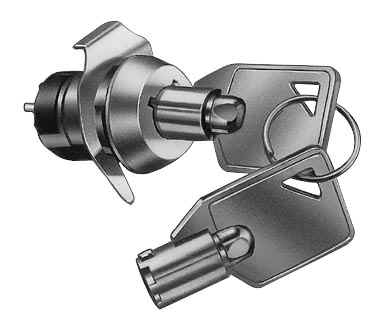

S502 S503 S504 KEYLOCK SWITCH
DESCRIPTIONS:
  • Zinc alloy die cast housing and cylinder.
  • Satin chrome plated standard.
  • 7 pin tumbler mechanism.
  • Steel made tubular keys, nickel plated.
  • Key may be withdrawn in both or three positions.
  • Silver plated contacts and terminals.
  • S502 2 position (off-on) 2 terminals.
  • S503 2 position (on-on) 4 terminals.
  • S504 3 position (off-on-on) 4 terminals.
  • Speed clip mounted.
  • 10000 combinations available.

SPECIFICATIONS:

  • Contact Rating: 2A 125VAC, 1A 250VAC.
  • Contact resistance: 10 Milli - Ohms Max.
  • Insulation Resistance: 200 Meg - Ohms Min. (500VDC)
  • Dielectric Strength: 1000VAC - 1 Minute.

KEY-PULL FIGURES
-Off Position
-Indicates Key-Pull
-Indicates No Key-Pull

Fig. No. Lock Number Pole Positions Terminals Key Pulls Turn Type
1 S502 1 2 2 2 90 ¢X ¡@ Off On SPST
2 S503 1 2 4 2 90 ¢X ¡@ On On SPDT
3 S504 1 3 4 3 45 ¢X-0 ¢X-90 ¢X Off On On SPDT

C501 CAM LOCK
DESCRIPTIONS:
  • Zinc alloy die cast housing and cylinder.
  • Stain chrome plated standard.
  • 7 pin tumbler mechanism.
  • Steel made tubular keys, nickel plated
  • Key withdrawals in both positions only.
  • Various cam configurations and rotations available.
  • Cam is affixed by nut.
  • Speed clip mounted.
  • 10000 combinations available.

KEY-PULL FIGURES
-Indicates Key-Pull
-Indicates No Key-Pull

Fig. No. Lock Number Positions Key Pulls Turn
1 C501-2 2 2 90 ¢X
